Strainers & Drain Cocks
-
Description
Brass Y Type Strainer. Stainless Steel Screen.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
0°C to +150°C
-
Description
DZR Brass Y Type Strainer. EPDM Seat.
Connection
Universal M & V Profile 15mm to 35mm
Dedicated M Profile 42mm & 54mmApprovals/ other
CE Approved
5 year warranty.Pressure
20 Bar Rated (DN15 to DN28), 17 Bar Rated (DN35 to DN54)
Temperature
-10°C to +150°C
-
Description
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Pressure
20 Bar Rated
Temperature
-10°C to +232°C
-
Not stocked in the UK.
Description
PN20 Bronze 'Y' Strainer. Bronze Body. Stainless Steel Strainer Basket. Tested to BS EN 12266.
Stock Availability
Not stocked in the UK.
Connection
Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
Approvals/ other
WRAS Approved
Pressure
20 Bar Rated
Temperature
-10°C to +170°C
-
Sizes DN350+ are subject to factory lead time.

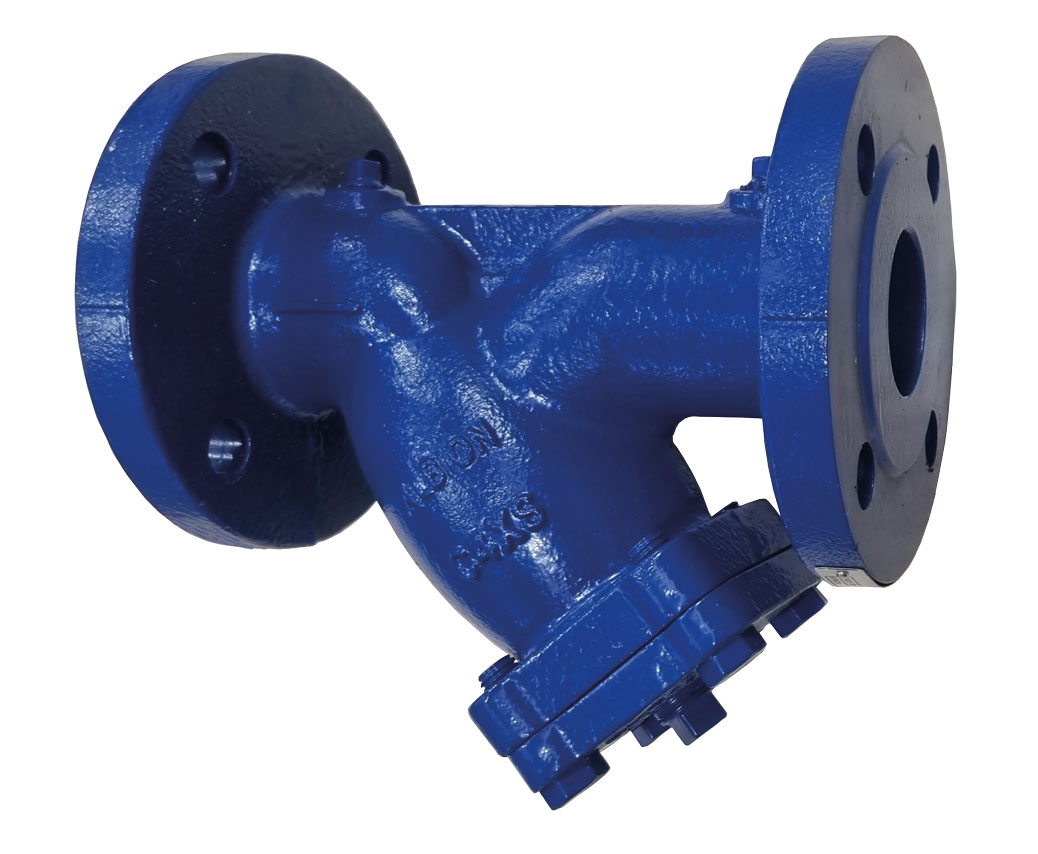

Description
Stock Availability
Sizes DN350+ are subject to factory lead time.
Connection
Flange Mounting PN16 Only
Approvals/ other
DN50-DN300 WRAS Approved
DN350-DN600 WRAS Approved CoatingPressure
16 Bar Rated
Temperature
-10°C to +85°C
-
Sizes DN350+ are subject to factory lead time.
Description
Stock Availability
Sizes DN350+ are subject to factory lead time.
Connection
Flanged PN16 - Conforms to BS EN1092 PN16
Approvals/ other
CE Approved
Pressure
16 Bar Rated
Temperature
-10°C to +230°C
-
Description
Flanged ANSI 125 Cast Iron 'Y' Strainer.
Stock Availability
Subject to factory lead time.
Connection
Flanged ANSI 125
Pressure
13.8 Bar Rated
Temperature
-10°C to +232°C
-
Description
PN25 Ductile Iron "Y" Strainer.
Stock Availability
Sizes 14"+ subject to factory lead time.
Connection
Flange Mounting PN25 Only.
Pressure
25 Bar Rated.
Temperature
-10°C to +230°C
-
Description
Stainless Steel 'Y' Type Strainer. 1mm/1000 Micron Mesh.
Connection
BSP Parallel F/F Ends (ISO 7/1)
Approvals/ other
Pressure
55 Bar Rated
Temperature
-25°C to +180°C
-
Description
Stainless Steel 'Y' Type Strainer Flanged PN16. ½" - 2" 1mm Mesh 2½" - 8" 2mm Mesh
Connection
Flanged PN16
Approvals/ other
Pressure
16 Bar Rated
Temperature
-25°C to +200°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flange Mounting PN16 Only. Flange conforms to BS EN1092 PN16
Pressure
16 Bar Rated
Temperature
0°C to +80°C
-
Subject to factory lead time.
Description
Stock Availability
Subject to factory lead time.
Connection
Flanged ANSI 150 (B16.42). Conforms to ANSI B16.10
Pressure
17.2 Bar Rated
Temperature
0°C to +80°C
-
Description
Brass Drain Cock. Screwed Male BSP Parallel (ISO 228/1). BS 2879/2 Type A. Hose Connection Outlet.
Connection
Screwed Male BSP Parallel (ISO 228/1)
Approvals/ other
WRAS Approved
Pressure
16 Bar
Temperature
-20°C to +90°C
-
Description
Brass Drain Cock. Male Spigot. BS 2879/2 Type A. Hose Connection Outlet.
Connection
Male Spigot
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-20°C to +90°C
-
Description
Brass Drain Cock. Extended Male Spigot. BS 2879/2 Type A. Hose Connection Outlet.
Connection
Extended Male Spigot
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-20°C to +90°C
-
Description
Connection
Screwed Male BSP Taper (ISO 7/1)
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-20°C to +120°C
-
Description
Bronze Drain Cock (Lockshield)
Connection
Screwed Male BSP Taper (ISO 7/1)
Approvals/ other
WRAS Approved
Pressure
16 Bar Rated
Temperature
-20°C to +120°C
-
Description
Drain Ball Valve. Tested to EN12266-1. 5 Year Guarantee.
Connection
BSP Parallel Male Ends (ISO 228/1) x Hose Connection
Pressure
Nominal Pressure : 16 bar
Max. Pressure: 20 Bar (0°C to 40°C)Temperature
-20°C to +90°C
